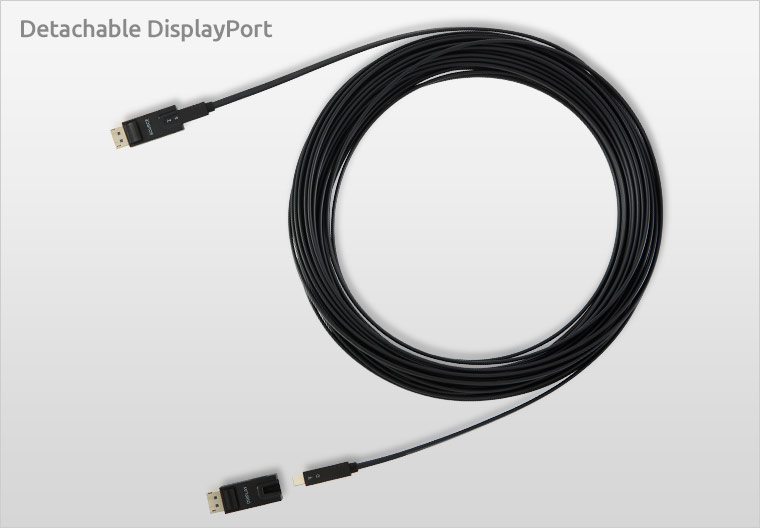

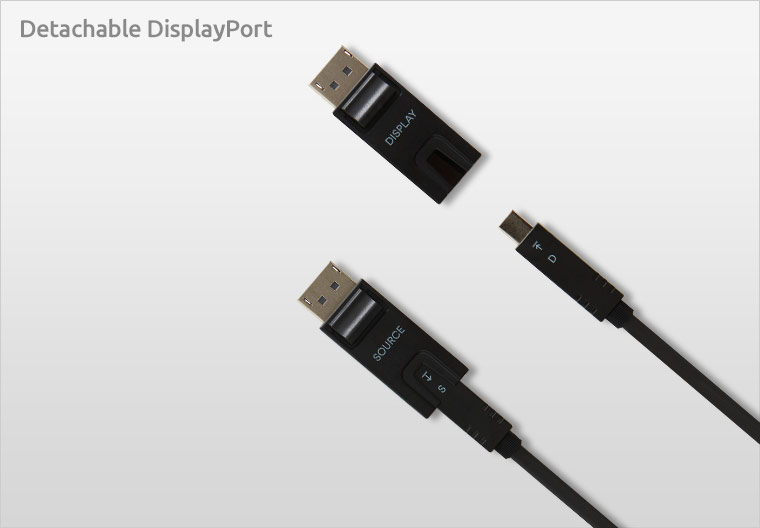

Detachable DisplayPort

The world 1st Manufacturer AOC with POF Zetalink

Home / Product / DisplayPort @ DVI / Detachable DisplayPort

The most perfect solution in any given space with mini DP
Adaptable with Displayport

Product description

DP1.4 enables high speed data transmission up to 48Gbps as high quality products come near future. Experience 7680 x 4320p (8K@30Hz Chroma 4:4:4, uncompressed), 7680 x 4320p (8K@60Hz Chroma4:4:4, DSC), 3D, 21:9 (True cinema), Multi stream video and audio, deep color, x.v.Color¢â, Dolby True HD, DTS-HD Master Audio.

Specification
  • Data rate: 48Gbps (12Gbps per channel)
  • Active optical cable with plastic optical fiber
  • Supported Features : HDCP1.x / 2.2 & HDR (High Dynamic Range)
  • Video Format :
  • 7680 x 4320p
    8K@30Hz Chroma4:4:4, uncompressed
    8K@60Hz Chroma4:4:4, Display Stream Compression
    3D, Deep color and x.v.Color¢â
    Dolby True HD, DTS-HD Master Audio

  • Cable length up to 50m
  • Pulling & Load Strength : 200N
  • Cable Jacket : UL-Certificated Plenum cable (CMP-OF)
  • Minimum bending radius : 5mm
  • Free from EMI and RFI
Possible Adaptor Type

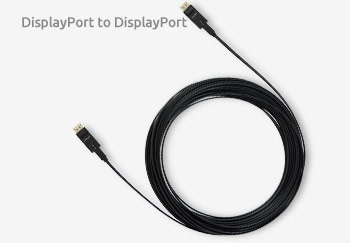

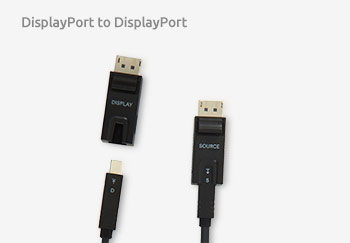

DisplayPort to DisplayPort

  • Specification is same as Mini DP to Mini DP
