Why Zetalink?
We, Zetalink, strive to deliver the best quality AOC to earn customer’s trust.
Why Zetalink?
The world 1st Manufacturer AOC with POF Zetalink
Plastic Optical
Fiber in Use
The World First POF AOC Manufacturer
: Zetalink succeeded in producing the world’s first AOC with POF (Plastic Optical
Fiber) in 2007.
Compared to Glass Optical Cable
• High-flex and tough
• No fiber break even in small bend
• Safe use(No dangerous debris)
• Perfectly workable with extended copper cables
Compared to Copper Cable
• Capability of 10Gbps and above with longer reach (up to 100m)
• Lower power consumption
• Light weight and thin cable
• Free of EMI/ RFI

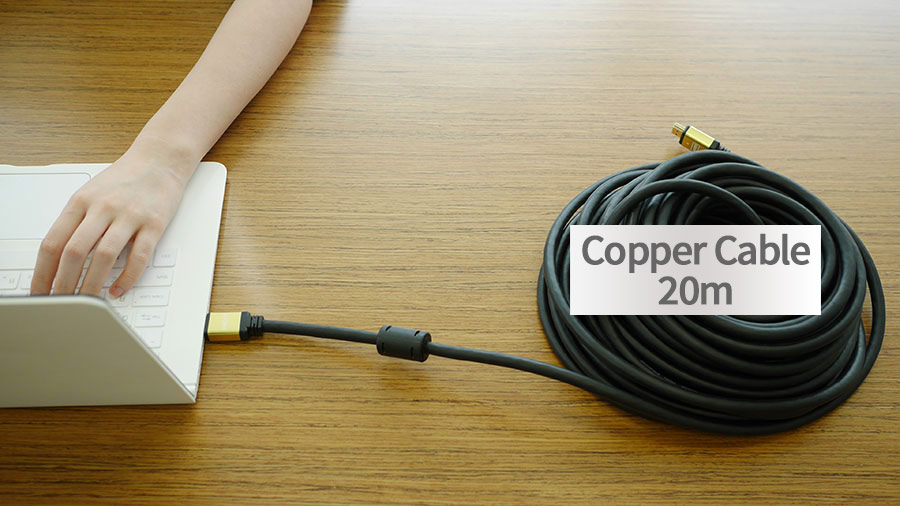

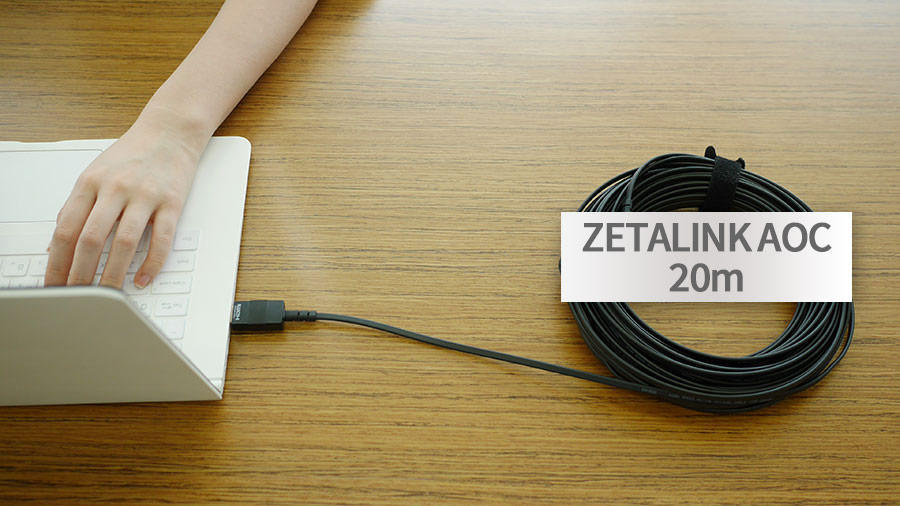

Appearance
Thickness
Zetalink
- Diameter : 2.9mm * 5.1mm
- Height : 35mm
Copper
- Diameter : 6.1mm
- Height : 69mm

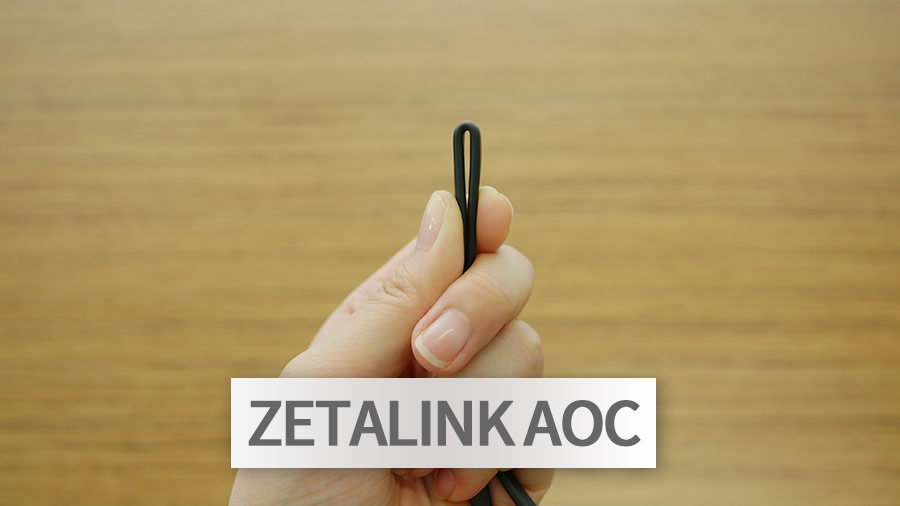

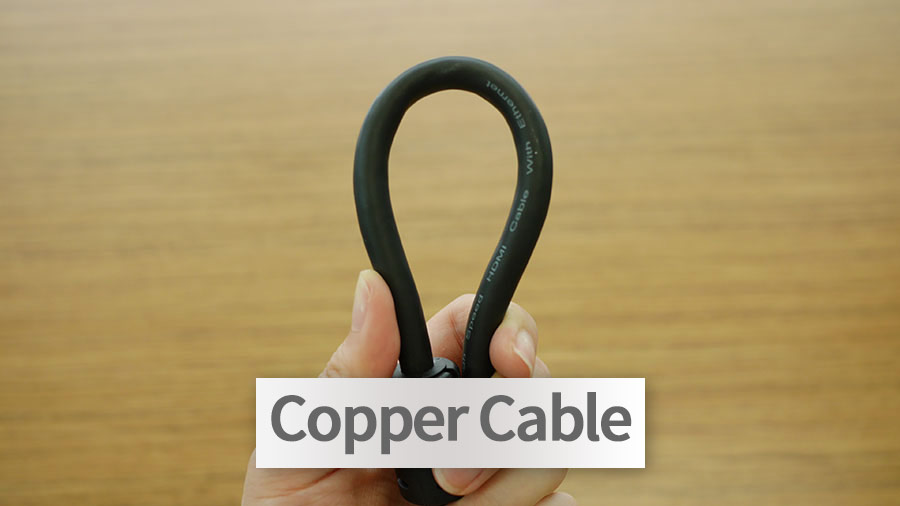

Bending Radius
- Zetalink : 5mm
- Copper : 40mm

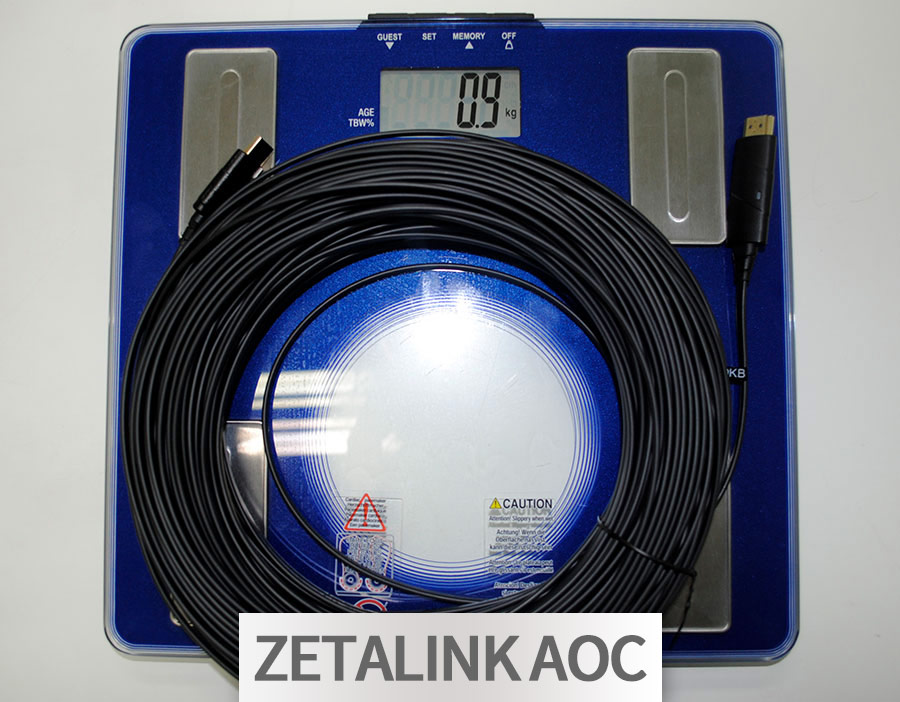

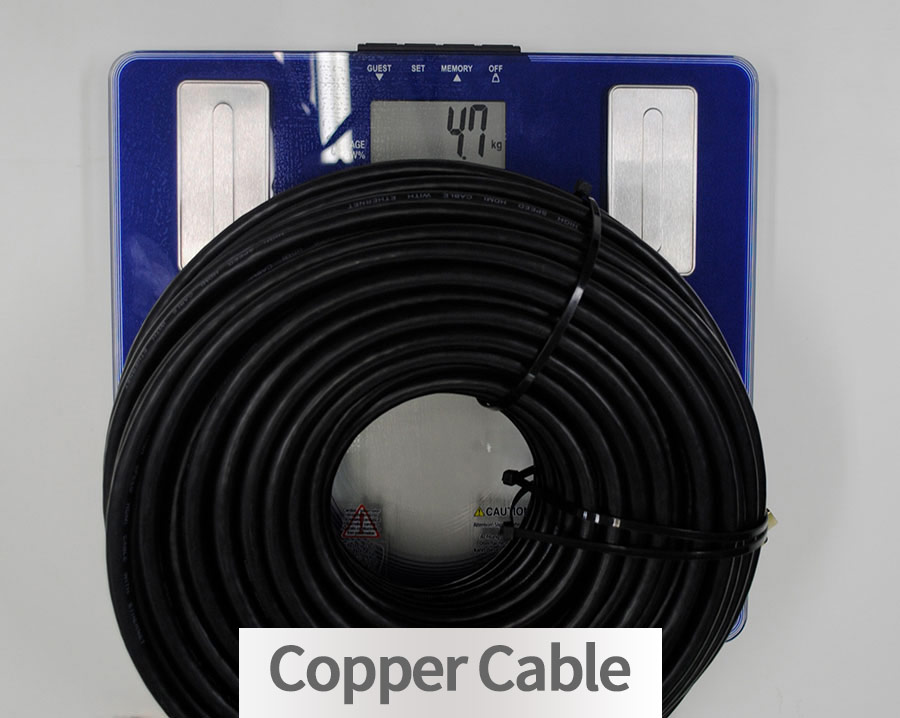

Weight
- Zetalink : 0.91kg(50m)
- Copper : 4.75kg(50m)
Quality

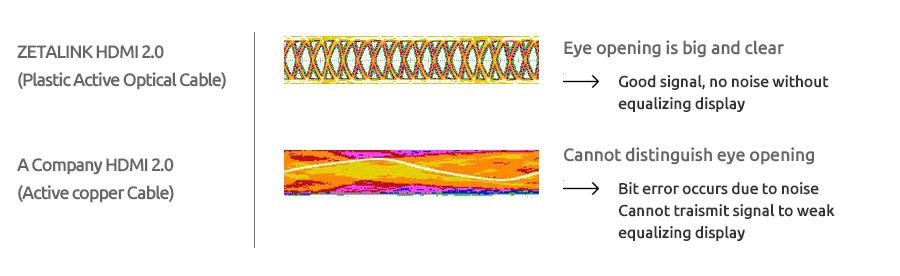

What is eye pattern?
An oscilloscope display in which a digital signal from a receiver is repetitively sampled and applied to the vertical input, while the data rate is used to trigger the horizontal sweep.

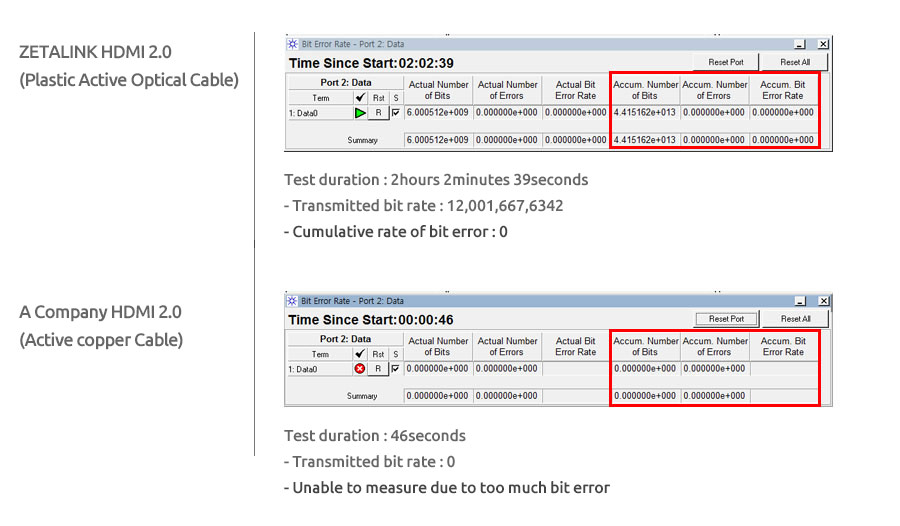

What is Bit Error Rate?
The number of received bits of a data stream over a communication channel that have been altered dut to noise, interference, distortion or bit synchronization errors.
