HDMI 2.0 Detachable

The world 1st Manufacturer AOC with POF Zetalink

Home / Product / HDMI / HDMI 2.0 Detachable

Experience the cutting edge of 4K resolution through Plastic Optical Fiber technology

Product description

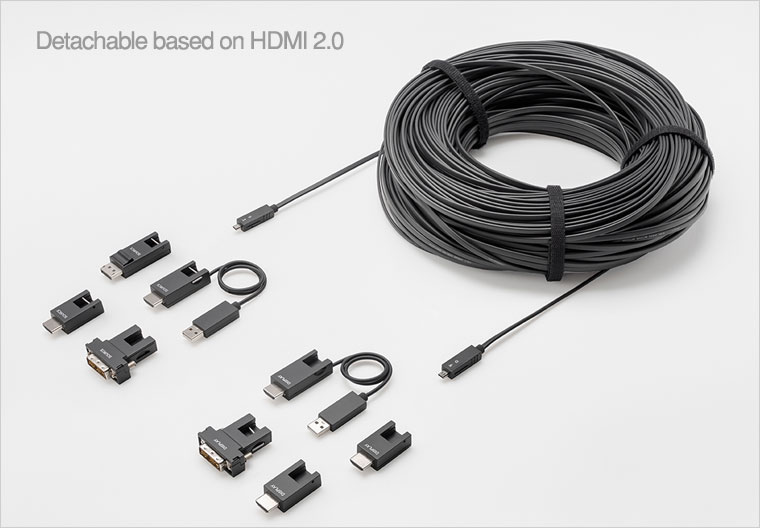

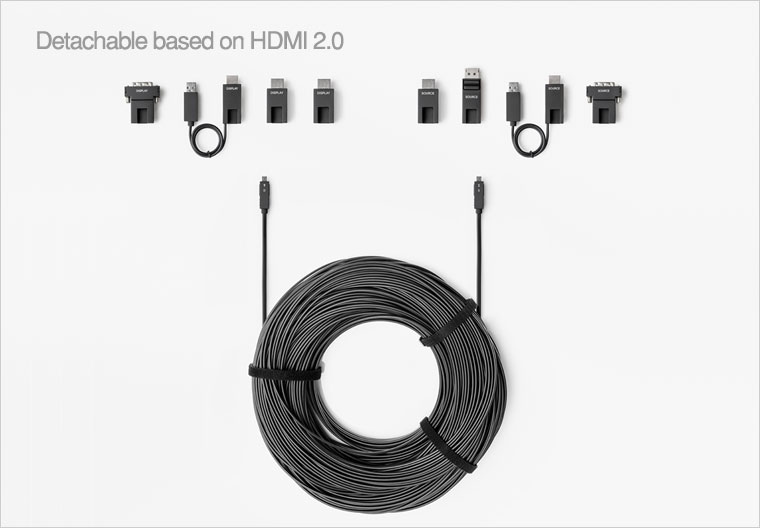

Detachable AOC based on HDMI micro D is free from narrow or curved space. It could be installed in any narrow or curved space such as home theater, public display system, industrial and medical display system, etc. Furthermore, HDMI micro D type AOC can be used with a wide variety of connectors such as HDMI A type, HDMI A type with equalizer, DisplayPort and DVI.

Specification
  • Data rate: 18Gbps (6Gbps per channel)
  • Active optical cable with plastic optical fiber
  • Supports 2160p (4K@60Hz Chroma 4:4:4), 1080p, 3D, 21:9
    (True cinema), Multi stream video and audio, deep color, x.v.Color™, Dolby True HD, DTS-HD Master Audio
  • Cable length up to 100m
  • Minimum bending radius: 5mm
  • Pulling & Load Strength : 200N
  • Cable Jacket : UL-Certificated Plenum cable (CMP-OF)
  • Free from EMI and RFI
  • Small and flexible cable for easy installation
  • Cable jacket : UL- Plenum cable / Non UL cable
  • No external power required
  • Operating Current : 47mA
Possible Adaptor Type

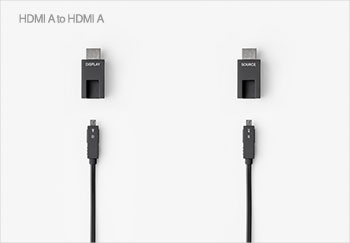

– HDMI A to HDMI A

  • Specification is same as Type D to Type D

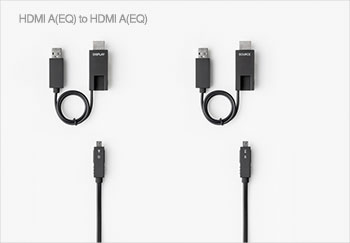

– HDMI A(EQ) to HDMI A(EQ)

  • External Power required
  • Perfectly workable with extended copper cable
  • Operating Current : 340mA

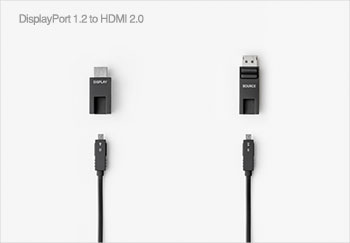

– DisplayPort 1.2 to HDMI 2.0

  • DisplayPort 1.2a/HDMI 2.0 compliant
  • Supports 2160p (4K@60Hz Chroma 4:4:4), 1080p, 3D, 21:9
    (True cinema), Multi stream video and audio, deep color x.v.Color™
  • Supports up to 8-channel LPCM, compressed audio (AC-3, DTS) and HBR audio formats
  • Supports up to 192kHz audio frame rate and up to 24-bit audio sample size

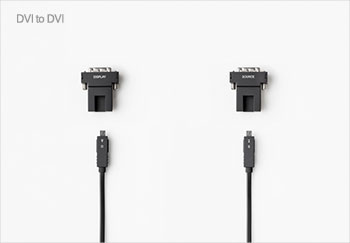

– DVI to DVI

  • Specification is same as DVI product
